Elle TENS Plus (Advanced Maternity TENS)
€125.00
In stock
SKU
tens9
Product Description

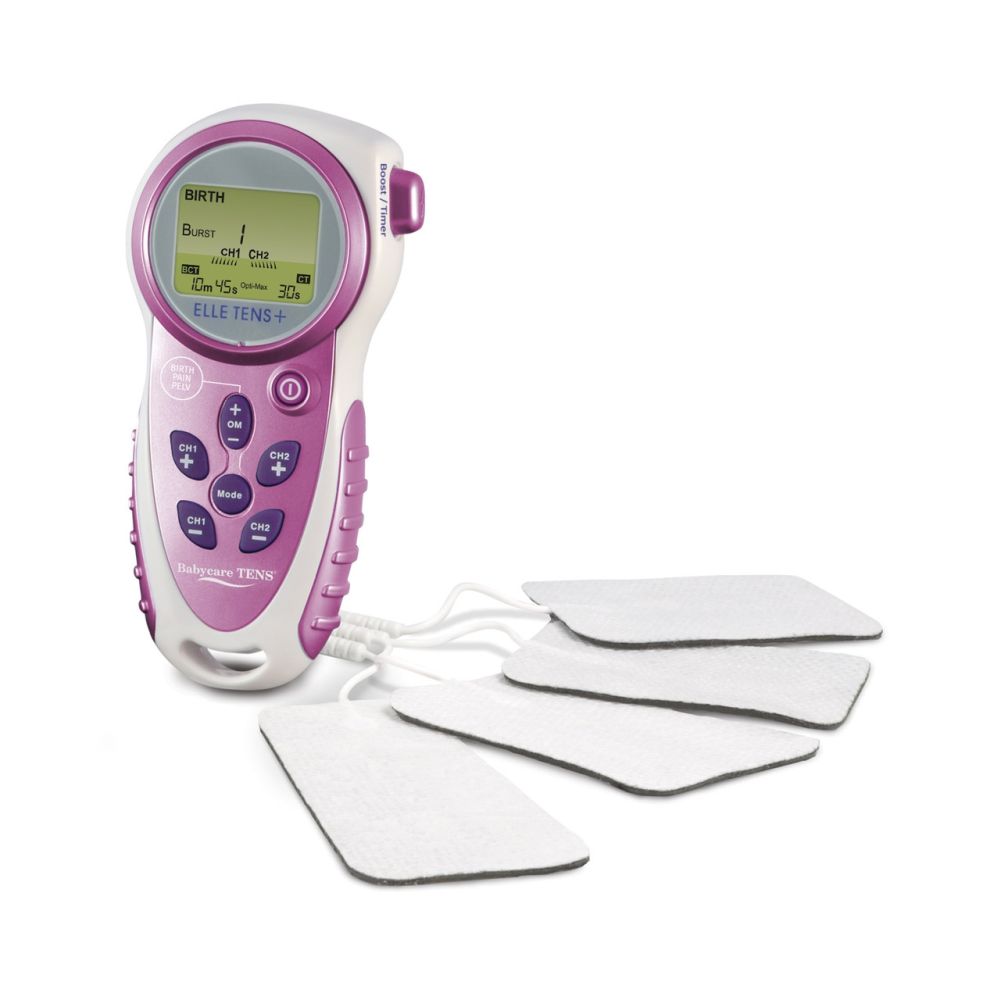

An Introduction to the Elle TENS+
The AWARD WINNING 3-in-1 Elle TENS+ with contraction timer is undoubtedly the ultimate obstetric TENS machine. Built with the same cutting-edge technology as the original award winning Elle TENS, the Elle TENS+ boasts 3 fully functional units in one - for all your labour and post labour needs, including separate pain mode for pain relief after labour. The Elle TENS plus also comes with the Sensatone vaginal probe and can be used for pelvic floor stimulation.
Features and Benefits
- 3 units in 1: treats birth pain,general pain and pelvic floor toning
- Built-in contraction timer
- Pre set modes for ease of use
- Integrated boost button
- Optimax technology for extra power
- Uses 4 large pads
- Easy to read user display
- Neck cord for mobility
What's Included?
- Pack of 4 electrode pads
- Instructions
- 2 leadwires plus 1 spare
- 2 x AA batteries plus 2 spare
- Vaginal probe
- Neck cord
- Soft carrying pouch
- Women's Guide to Drug Free Pain Relief - FREE
- Pad placement chart
Technical details
General
| Equipment type | Dual Channel Digital TENS | ||
| Classification This unit is fully compliant with EEC Directive 93/42/EEC, classified as internally powered equipment type BF. It is intended for continuous operation. * Default pulse width after mode changed (pulse width not changed when switched between BURST and BOOST mode) 5 selectable pulse widths in all modes: 50, 100, 150, 200, 250. | |||
| Unit Size | 115mm x 55mm x 30mm | ||
| Unit Weight | 75 grams | ||
| Output Jacks | CE Touch-proof jacks | ||
| Display | Digital LCD - 8 seven segment digits and around 95 segments | ||
| Automatic Power Off | Will switch off after 5 minutes if not used | ||
| Battery Low Detect | 2.2v±0.2v | ||
| Battery | 2 x 1.5v AA Battery (Type LR6) | ||
| Operating Environment | Temperature 0-40˚C Air humidity 30-75% Air pressure 700 hPa-1060 hPa | ||
| Storage and Transport Environment |
Temperature 0-40˚C Air humidity 30-90% Air pressure 700 hPa-1060 hPa |
||
Birth Mode
| Programme | Display | Output Frequency / Duration | |
|---|---|---|---|
| Burst | Burst 1 | Pulse Frequency (16Hz) Pulse Width (150µs) 1 burst per second, 8 pulses per burst* | |
| Burst | Burst 2 | Pulse Frequency (32Hz) Pulse Width (150µs) 2 bursts per second, 8 pulses per burst* | |
| Boost | Boost 1 | Pulse Frequency (80Hz) Pulse Width (150µs) continuous* | |
| Boost 2 | Boost 2 | Pulse Frequency (100Hz) Pulse Width (150µs) continuous* | |
| Output Channel | Dual Channel | ||
| Output Waveform | Symmetrical bi-phasic rectangular | ||
| Output Voltage | 0 - 55v zero to peak adjustable in 15 steps at 500q load | ||
| Output Intensity | 0 - 110mA adjustable in 15 steps at 500q load Intensity level will drop back to zero after programme changes | ||
* Pulse width adjustment does not change when switching between Burst and Boost modes. Default pulse width is 150µs. There are 5 adjustable pulse widths selectable in all modes: 50, 100, 150, 200 and 250µs.
| Price | €125.00 |
|---|---|
| Pick Your Size | XL (A) |
